Large-scale manual operable partition system across 15,374 SF at one of Peru's premier convention facilities, featuring SIGMA 'C' panels with #1A, #2, and #8 track configurations. Completed 2015.
Coverage15,374 SF
Details →
Manual Systems
Individual Panels
Advanced Equipment's individual panel system offers maximum configuration flexibility — move any panel to any position along the track for precise room division in any venue.
System Features
Every individual panel system is engineered to AEC's exacting standards for performance, longevity, and ease of use.
Single-panel manual operation
All-welded, all-steel construction (ALPHA & SIGMA)
STC ratings up to 54
Panel heights up to 60 feet (ALPHA series)
Custom widths and finishes available
Compatible with curved track configurations
LEED qualifying construction
Up to 20-year limited panel warranty (ALPHA)
Field-tested NIC 42 ASTM E 336
Acoustically absorptive options available (NRC 0.65)
Customized remote panel storage

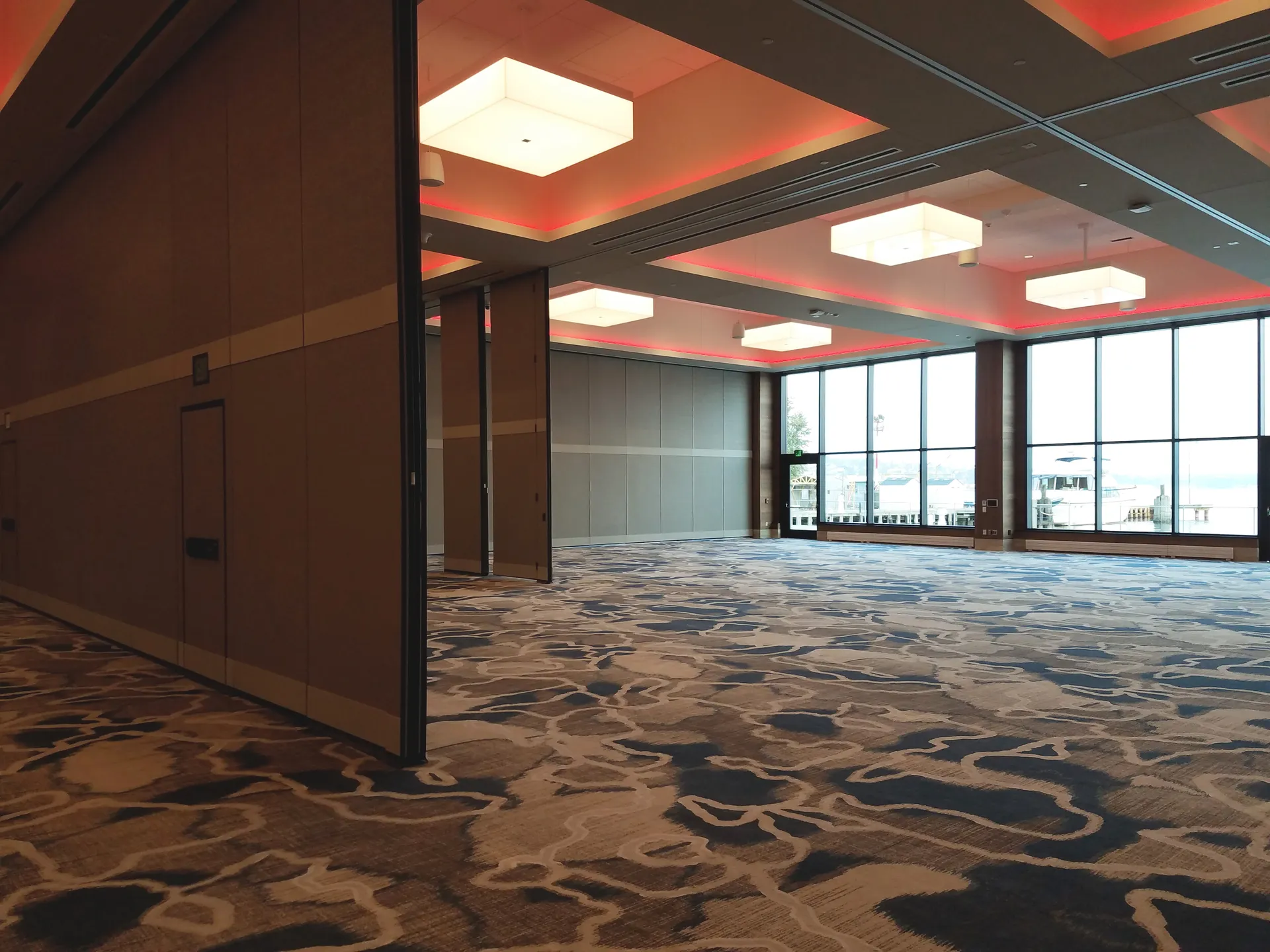

What Are Individual Panels?
Individual panels enable customized remote storage for virtually any layout, providing maximum flexibility for complex and frequently changing room configurations. Panels are top-supported, manually operated, and independently suspended, each equipped with dual trolleys for smooth, reliable movement.
Each panel moves independently for total layout flexibility
Available in ALPHA, SIGMA, and GAMMA panel series
Custom finish options including fabric, vinyl, wood veneer, and more
Why Choose Individual Panels?
Precision placement and a panel series for every project type.
Maximum Flexibility
Individually movable panels enable customized remote storage for virtually any layout, providing maximum flexibility for complex and frequently changing room configurations.
Three Panel Series
Choose from ALPHA, SIGMA, or GAMMA panel construction to match your project's performance requirements and budget — all built to AEC's exacting standards.
Proven Durability
All-welded steel construction means no loose fasteners, no panel flex, and a service life that matches the building itself — backed by industry-leading warranties.
Panel Construction
Three distinct panel series — choose the right construction for your project's performance requirements and budget.
ALPHA®
The all-welded, all-steel construction with heavy steel (16 or 14 gauge) faces robotically fusion welded every 8 inches to perimeter frame members.
Best obtainable rigidity and life expectancy
Low maintenance and ease of operation
One piece panels to 60 feet high
Panel widths to 60 inches
10 or 20 year limited panel warranty
STC to 54, field tested NIC 42 ASTM E 336
Available acoustically absorptive NRC 0.65
Qualifies for LEED Credit MR 4.1 & MR 4.2
SIGMA®
The cost-effective version of our ALPHA series panels. All-welded steel construction with face sheet thickness ranging from 20 ga. to 16 ga.
Cost effective solution to durability
One piece panels to 25 feet high
Panel width to 54 inches
5 year limited warranty
STC to 53, NIC to 42 E-336
Qualifies for LEED Credit MR 4.1 & MR 4.2
GAMMA®
AEC's most cost-effective panel construction. Panel face sheets are gypsum board or particle board. Structural aluminum frame members are mechanically fastened.
Economical solution to space division needs
One piece panels to 12 ft high
Maximum panel height is 16 ft
Panel widths to 48 inches
STC from 45 to 52, NIC to 38 E-336
Field replaceable face sheets
More Work
Similar Projects
Writing a valid operable wall specification is as easy as 1-2-3
Use DWSpec™ to generate accurate, project-specific specifications for any individual panel system in minutes.
Related Manual Systems
Explore other manual operable wall solutions from Advanced Equipment.
Paired Panels
Hinged panel pairs for high-traffic venues — cuts setup time in half and reduces the staff needed to operate the system.
Learn MoreImage Series (Glass Walls)
Folding glass operable partitions available in manual operation with single or double glazed options.
Learn MoreCurved Panel Systems
The only manufacturer with true curved track and curved steel panels, available in both manual and electric operation.
Learn MoreReady to Specify Individual Panels?
Contact our team to discuss which panel series is right for your project.
