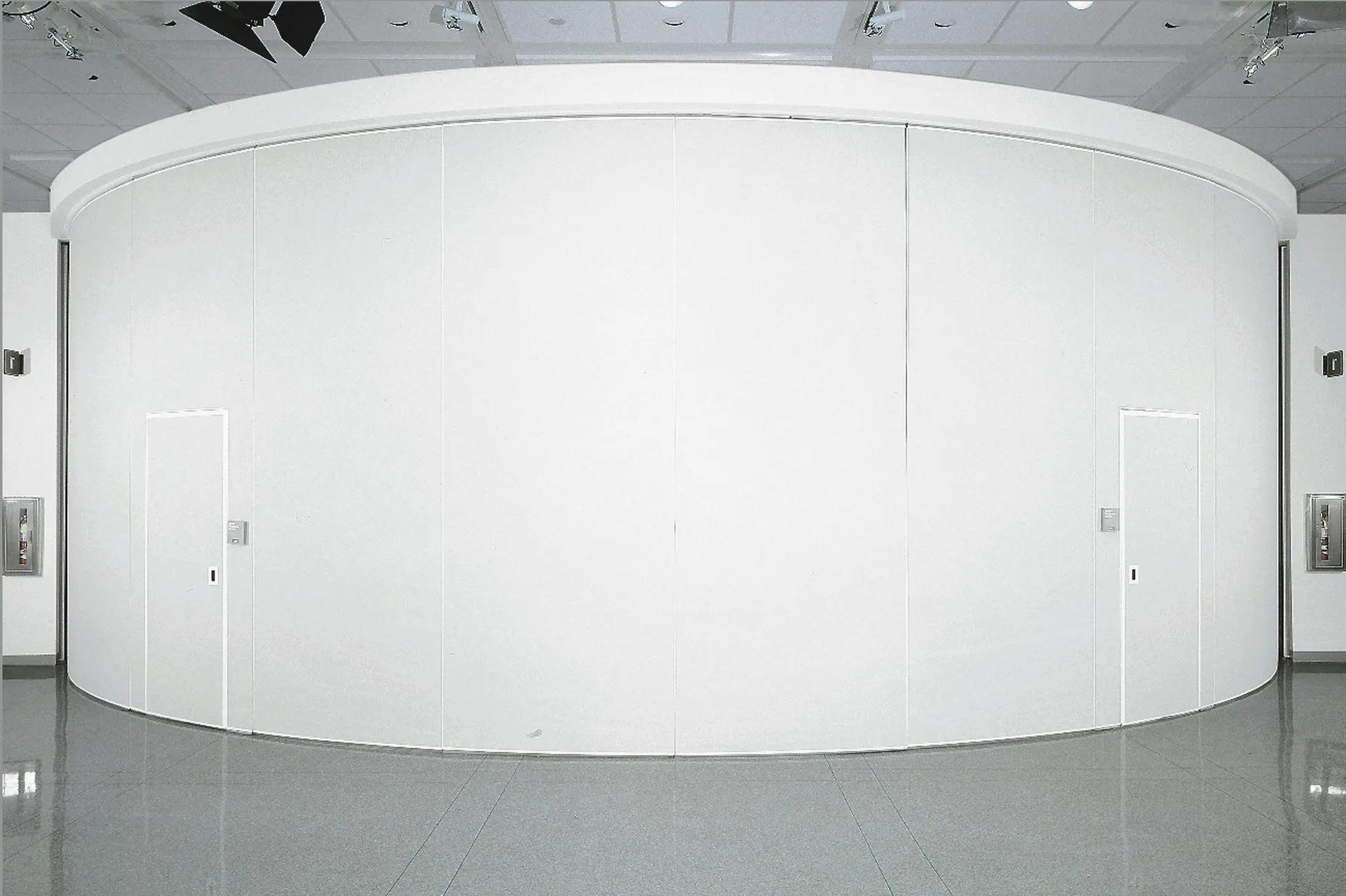

Curved Panel Systems
A space division option more compatible with your room design than any straight-line operable wall can achieve.
Every curved panel system is engineered to AEC's exacting standards for performance, longevity, and ease of use.
Design Without Limits
The use of CURVE panel operation on curved tracks of the same radius provides the designer with a space division option that may be more compatible with the room design than can be achieved with the typical straight-line operable wall.
- Manual or electric operation
- Curved panels and curved track of the same radius
- Compatible with ALPHA panel construction
- Custom radius to suit any architectural design
Why Choose Curved Systems?
The unique advantages that make curved panel systems a distinctive design choice.
Only Product Available with Radiused Track and Panels
AEC is the only manufacturer offering both radiused track and matching curved panels as a single integrated system — no compromises, no workarounds.
Aesthetics
Curved panel operation on curved tracks of the same radius provides a space division option that is more compatible with the room design than can be achieved with a typical straight-line operable wall.
Panel Construction
Curved panels are fabricated on ALPHA series construction — all-welded, all-steel — custom-formed to your project's exact radius. Track systems are CNC-manufactured to match, ensuring perfect alignment through the full curve.
ALPHA® Curved Panels
All-welded steel panels formed to a custom radius. Panels to 30 feet high, widths to 60 inches. Field-tested NIC 42 (ASTM E 336); laboratory STC to 53.
- Custom radius fabrication
- Panels to 30 ft high
- NIC 42 (ASTM E 336); STC to 53
- 10-year limited panel warranty
- Available NRC 0.65
Radiused Track System
CNC-manufactured curved track precisely matched to panel radius. Tight radius (min. 3 ft) to any large radius — no maximum limitation.
- Minimum 3-ft radius
- No maximum radius
- Combines with straight sections
- Manual or electric compatible
Operation Options
Curved systems are available in manual operation or fully electric drive, depending on panel count and venue requirements.
- Manual or electric drive
- Compatible with ALPHA series
- Pocket or center-stack storage
- Custom finish options
Writing a valid operable wall specification is as easy as 1-2-3
Use DWSpec™ to generate accurate, project-specific specifications for any curved panel system in minutes.
New to the process? Read our six-step guide to specifying an operable partition.
Curved partitions: common questions
Can operable walls be curved?
Yes. Advanced Equipment manufactures curved panels that travel on a radiused track of the same radius, so the wall follows the curve of the room instead of cutting across it in straight segments.
What makes the Advanced Equipment curved system different?
It is the only system offering both a radiused track and matching curved panels as one integrated product. Curved layouts from other manufacturers are typically approximated using straight panels on a segmented track.
Can the radius be customized?
Yes — the radius is fabricated to suit the architectural design rather than selected from fixed options. Minimum radius is 3 ft, with no maximum.
How tall can curved panels be?
Curved panels are manufactured to a maximum of 30 feet high. (Straight ALPHA® panels go to 46 feet in one piece and to 60 feet as two-piece field-spliced panels; the curved range is lower.)
Are curved systems manual or automated?
Both. Curved systems are available in manual or electric operation and are compatible with ALPHA® panel construction. We compare the two in manual vs. electric operable walls.
