A glass operable wall does two things at once: it divides a room when you need separation and disappears into daylight when you do not. For architects specifying full-height glazing that still has to move, Advanced Equipment’s Image Series glass partitions pair the transparency of a curtain wall with the flexibility of an operable partition. This guide covers what these glass wall systems are, how they install, the glazing you can specify, and where they earn their place.
What an operable glass wall is
Image partitions are Advanced Equipment’s premium tall glass partition system — full glass panels in a welded tube steel frame, engineered for heights up to 30 feet. Unlike a fixed glass wall, the panels move: they open to connect spaces and close to divide them, in manual or electric operation and in folding, single-panel, or slider configurations. The result is a movable glass wall that reads as architecture, not hardware.
How glass operable walls install — and why "no floor track" matters
Like every Advanced Equipment operable wall, Image is top-hung: the panels hang from trolleys in an overhead track, and the structure above — not the floor — carries the load. For glass, that principle pays off twice. First, most Image applications need no floor track at all, so the floor stays clean and uninterrupted and the glazing runs unbroken from head to sill. Second, because the overhead structure carries the weight, the supporting steel has to be planned with the wall. Bringing the track layout and structural interface into the drawings early is the single biggest factor in a smooth glass wall installation.
Choosing the glass: clear, frosted, or laminated
Image partitions are offered in single or double glazed options, and the glazing you choose sets the balance between light, privacy, and safety:
- Clear glass — maximum transparency and daylight for open, connected spaces.
- Frosted or obscured glass — keeps privacy while still diffusing light through the wall.
- Laminated glass — safety-rated, with improved acoustic performance and optional UV protection.
Getting privacy, acoustics, and safety right on a glass division is the same discipline as any operable wall — if sound separation matters, read how operable wall sound ratings actually work before you specify.
Where glass operable walls fit

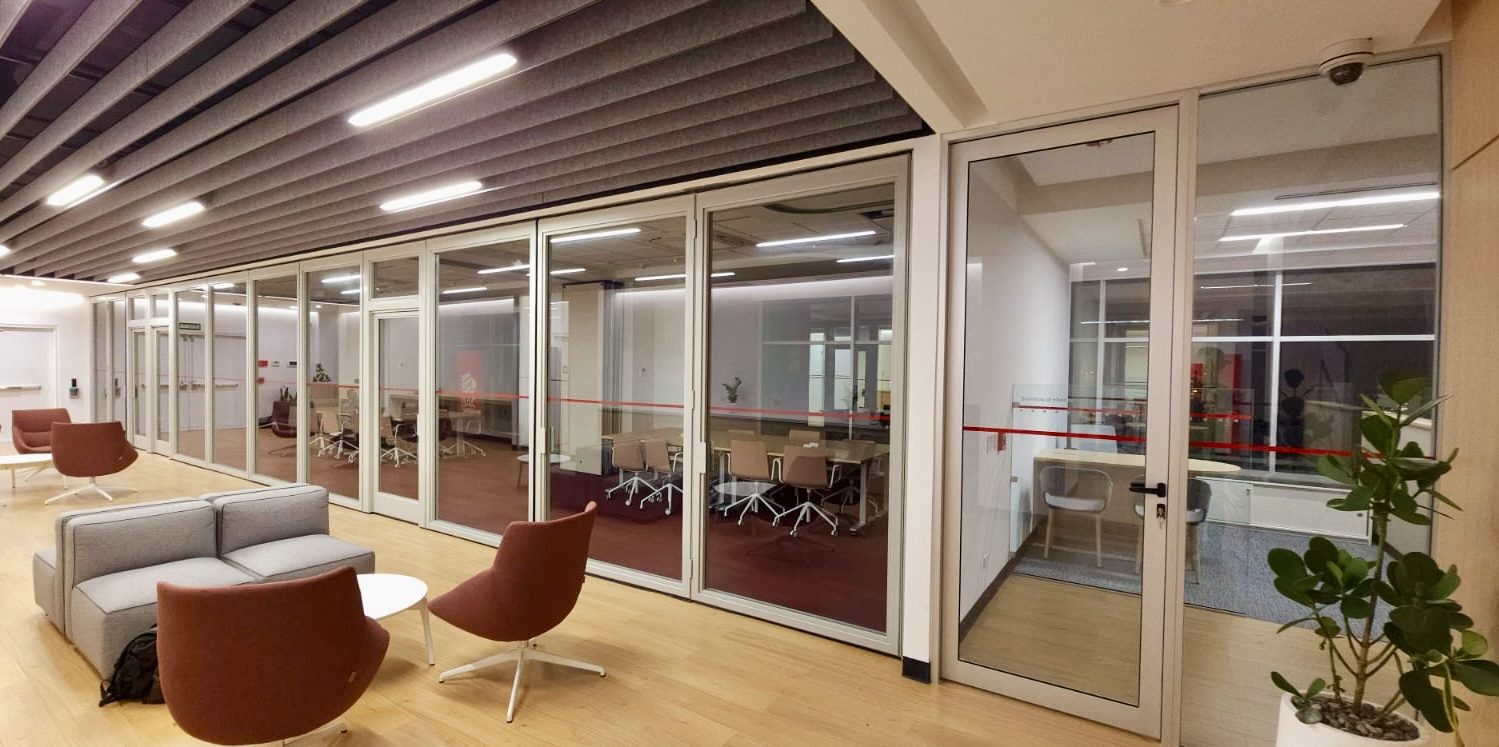

Image goes where a space needs to feel open but occasionally has to close — hotel and event venues, corporate and commercial interiors, civic buildings, and libraries. A few in the field: the JW Marriott Ihilani resort on Oahu runs 9,195 square feet of Image glass; the BAC Solarium in Guanacaste, Costa Rica uses it as a daylight-filled glass division; Regional Utilities in Navarre, Florida specified an Image glass sliding wall; and the San Diego Library and the Asamblea Legislativa of Costa Rica both divide public rooms with it.
Finishes and how it fits the wider program
The steel frame finishes in powdercoat, wood veneer, or Tynemic to match the interior, and Image shares the same track, drive, and engineering as the rest of the Advanced Equipment line. Many buildings pair a glass Image feature wall with manual or electric steel-panel systems elsewhere in the same project — one manufacturer, one integrated set of details.
Planning a glass wall installation
Advanced Equipment designs, manufactures, and installs its own glass walls — nationwide from our Fullerton, California headquarters and a Pacific Northwest location near Seattle. Whether the project is a single glass feature wall or a full operable glass division, the move is the same: bring us the opening early so we engineer the glass, the frame, the track, and the structural interface as one system. Tell us about the space, generate a project-specific spec with DWspec®, or pull drawings from the document library.
Already have glass panels that bind, drag, or will not seal? Our factory-trained crews service operable and glass walls from every manufacturer, not just our own.
- Image Series: full glass panels in a welded tube steel frame, heights to 30 ft
- Top-hung, with no floor track on most applications
- Manual or electric operation; folding, single-panel, or slider
- Clear, frosted, or laminated glass; single or double glazed
- Designed, built, and installed by Advanced Equipment — since 1957
